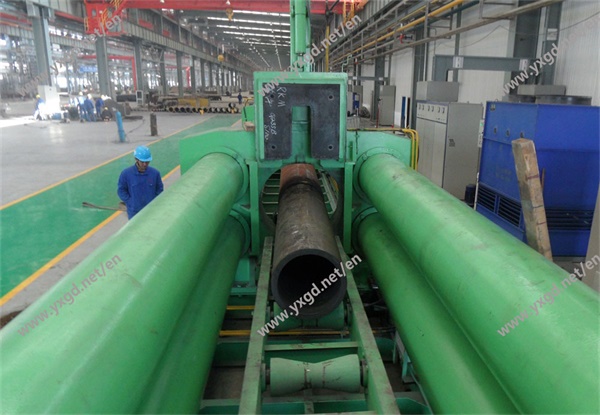

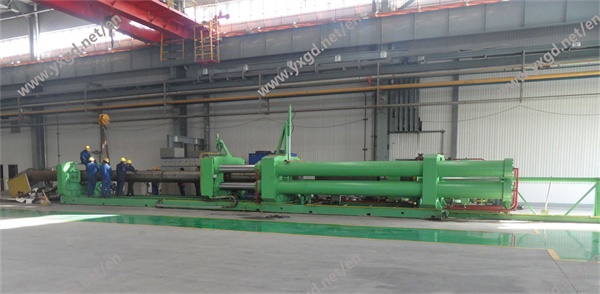

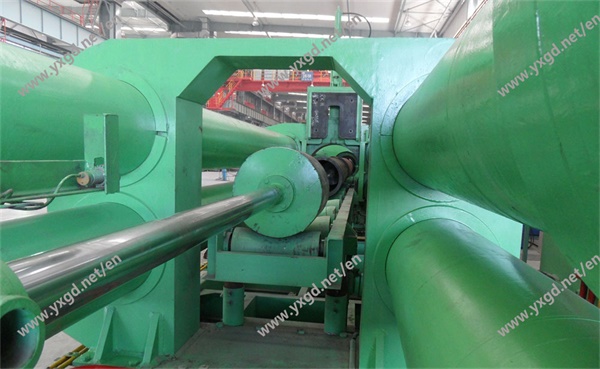

530mm hot forming hydraulic elbow making machine (PLC CONTROL)

• Maker : DEZHOU YAXING (China)
• Model : EWT- IA-219
• Elbow OD range: 219-530mm
• Max wall thickness: 14mm
• Raw tube material: carbon steel, alloy steel
• Max pushing force : 160 ton
• Work speed: 0-1100mm/min(adjustable)
• Hydraulic system max pressure: 21Mpa
• Medium-frequency power supply: 30 ～400KW (digital control)
• Electricity consumption: 41kw
• Transformer power:400～500KVA
  The power of equipment requirements will be done according to client’s national standard.

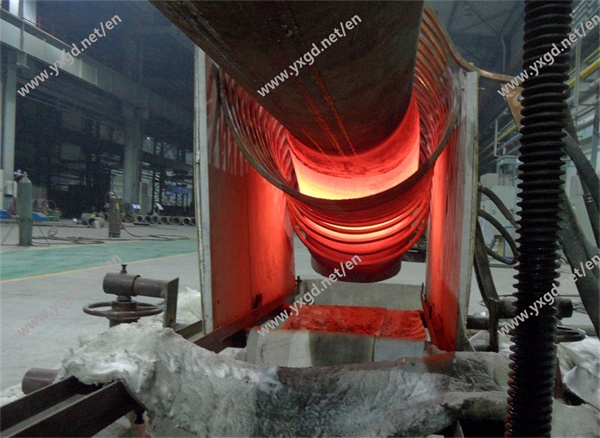

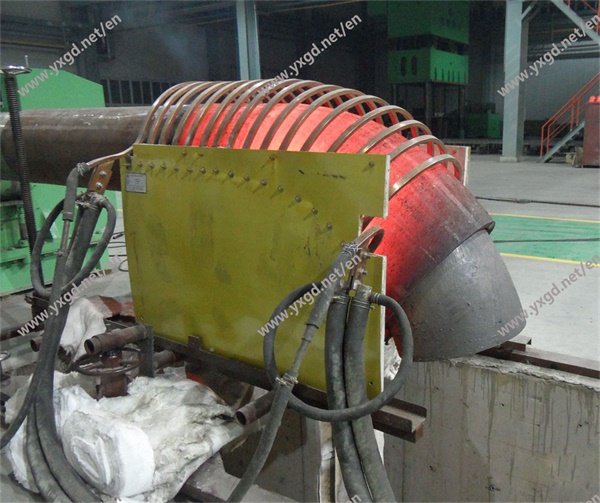

It includes heating coils ( 159,219,273,325,426,530mm ).
