Elbow Making Machine

1. Elbow Making Machine introduction:

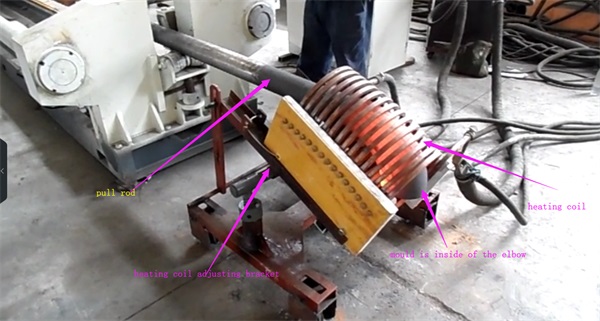

The Elbow Making Machine is our main product, which adopts the method of hydraulic propulsion and induction heating to produce a variety of elbows in 1D ~ 2.5D.  It combines together extra-short stress line taper mold expanding technology, digital control medium frequency induction heating technology, back pressure free, no back pressure low-energy consumption hydraulic transmission technologies. The Elbow Making Machine is mainly used to produce all kinds of carbon steel elbows.

2. Elbow Making Machine technical parameters：

1) Elbow specifications range：

OD：φ25mm～φ1420mm

wall thickness：4mm～120mm；（sectional design and manufacturing the equipment）

2) Angle：22.5°, 45°, 90°, 135° and random angle user demands

3) Elbow bending radius range：1D～2.5D

4) The Elbow Making Machine can push kinds of bend pipes with different radius as required, also called unequal diameter bend.

5) the mother pipe material can be seamless steel pipe, straight welded pipe and spiral welded pipes.

The Elbow Making Machine can be designed and manufactured according to clients' requirement. Welcome to contact us to get more details!
