Round to Square Pipe Forming Machine

RSH Round to Square Pipe Forming Machine

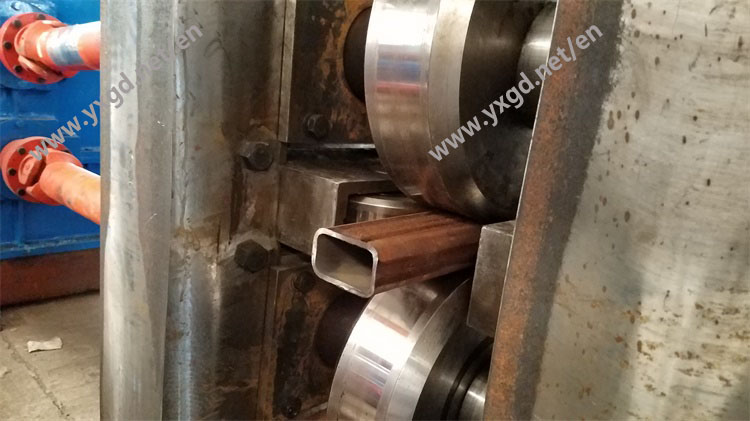

1. Equipment Uses：The machine unit is cold rolling special use equipment by pushing and squeezing the round pipe to square tube, rectangular tube or a variety of special tubes. The side length and wall thickness of square and rectangular tubes produced based on the technology has reached the best in the industry. The machine unit can also be used as cold sizing equipment of large and medium diameter steel pipes.

2. Equipment Structure：the equipment adopts the structure combined by universal stand with horizontal and vertical roll symmetry in the same plane and the large thrust hydraulic pushing machine. It has solved the problem of limiting special pipe side length and wall thickness in cold bending forming technology. The tubes side length and wall thickness produced by this machine have been increased 1 to 3 times than active roller machine and bending machine unit.

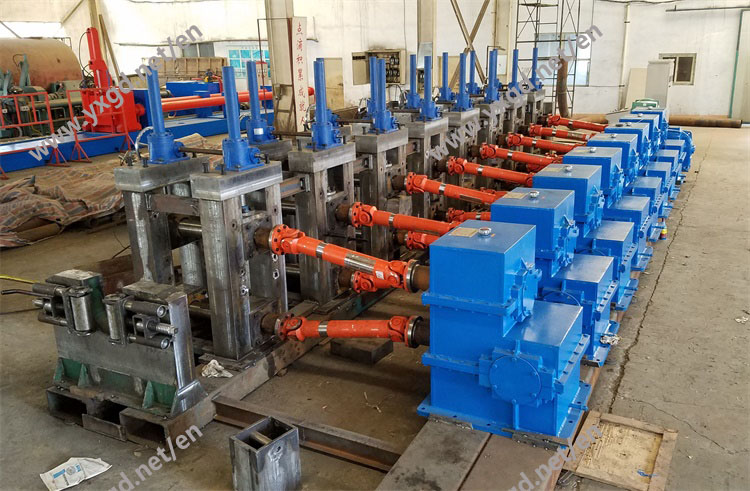

The machine unit is composed of 4 sets of deformation racks and 1 set of straightening rack(Turkey Head),which will be installed on same ground plane.

The machine unit push power equipment is designed and manufactured according to patent principle of hydraulic two-step pushing expanding machine.

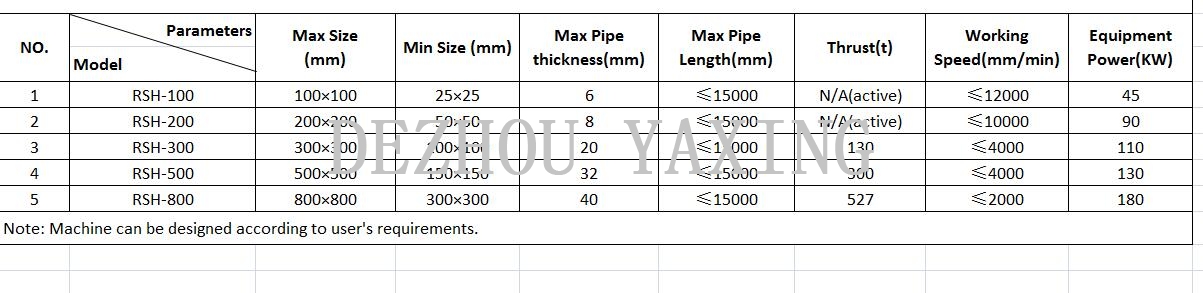

3. Square and Rectangular Tubes Technical Parameters:

1)Max：side length×side length＝800×800 ；wall thickness:35mm；

2)Min：side length×side length＝25×25； wall thickness:2mm

3)Tube length：3～15m

4)equip the suitable square and rectangular tubes forming rollers sectionally.
