Steel Pipe Straightening Machine

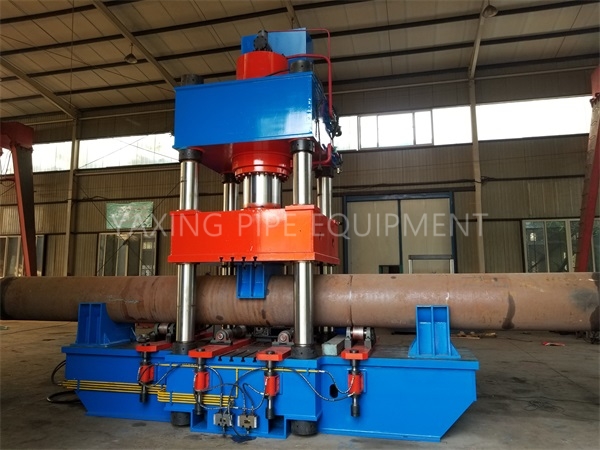

YGL Steel Pipe Hydraulic Straightening Machine
1. Equipment Uses：
The equipment is equipped with special pipe use straightening workbench, suitable for straightening kinds of steel pipes. Equipped with elbow reshaping moulds, it can also reshape
kinds of elbows.
2. Main Technical Parameters (list)：
|
NO. |
Item |
Unit |
Parameters |
|
|
1 |
nominal force（max straightening force） |
KN(t) |
1000～30000 (100～3000) |
|
|
2 |
hydraulic system max working pressure |
MPa |
25 |
|
|
3 |
sliding block max stroke |
mm |
600～1620 |
|
|
4 |
roller movement max stroke |
mm |
100 |
|
|
5 |
max distance from sliding block to workbench surface |
mm |
1000～1620 |
|
|
6 |
the distance between center distance of straightening workpiece and ground |
mm |
900～1200 |
|
|
7 |
workbench effective area |
length：3000～6000mm，width：600～1600mm |
||
|
8 |
stand column center distance |
left&right |
mm |
600～1600 |
|
front&back |
mm |
800～1000 |
||
|
9 |
the distance of workbench away from ground |
mm |
650 |
|
|
10 |
motor total power |
KW |
15～110 |
|
|
11 |
floor space |
left&right |
mm |
4000 |
|
front&back |
mm |
3150×6150 |
||
